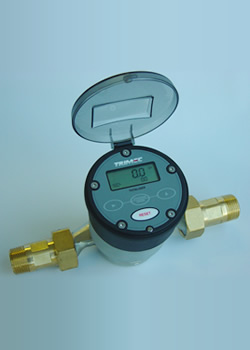

Utility Meter

The UM series flowmeter is specifically engineered for monitoring or controlling the movements of small to medium volumes of water, diesel fuels, or non-volatile low viscosity liquids in small pipe sizes.

The UM series is available in either blind configuration with dual pulsed outputs (Hall Effect & Reed Switch) or with an onboard self powered register to display rate, total, batch total or the meter can be fitted with an integral batch controller.

Utilising the proven inferential impeller measuring principle, the UM will tolerate liquids bearing a degree of suspended solids, where larger particles are captured by an integral inlet strainer screen which is accessible for periodic inspection.

¾? BSPM or NPT threaded close coupled process connections combined with integral flow conditioning ports eliminates the need for straight run piping sections to simplify installation requirements. Nickel plated brass construction offers protection against corrosion.

Features & Benefits
  • Large 5 digit LCD batch total display and cumulative totaliser
    (8 digit cumulative)
  • Robust IP66 field mountable housing
  • Simple flow chart touch key programming
  • Scaleable universal high speed pulse and frequency flow inputs
  • PIN protected programming
  • Scale pulse output available
Options
  • Battery or 24 VDC supply

For more information Click here to: download PDF / datasheet
