Multipulse Gear

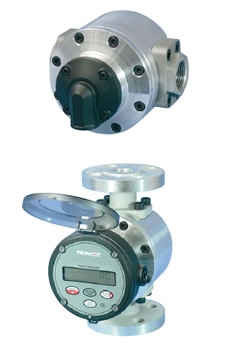

The Trimec Micropulse range of oval gear positive displacement flowmeters offer a high level of accuracy and repeatability. These precision meters can be used for flowrate measurement, in flow monitoring control applications and for totalising duties in dispensing & batching. They are suitable for use with a wide range of clean liquids including viscous lubricants, chemicals, food bases and non-conductive, low viscosity solvents, either pumped or gravity fed..

Features & Benefits
  • For flows from 1 up to 500 lit/min
  • Sizes 15, 25, 40 and 50mm process connections
  • High accuracy and repeatability, direct reading flowmeter
  • Pressures up to 400 Bar
  • No need for flow conditioning
  • Stainless steel rotors and ceramic bearings
  • Intrinsically safe, explosion proof models available
  • Quadrature pulse output option and bi-directional flow

For more information Click here to: download PDF / datasheet
