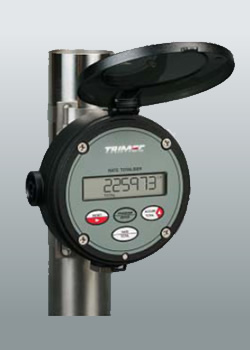

RT Series Rate Totaliser

The RT self-powered flow rate totaliser is designed for computing and displaying flow rates and totals from flowmeters or machinery with frequency, sine wave, pulse or analog outputs. It displays instantaneous flow rate, resettable (batch) total and a cumulative total in engineering units as programmed by the user.

Features & Benefits
  • Self or external powered, 8 digit LCD total and cumulative totaliser, 5 digit rate display
  • Robust IP66 field mountable housing with protection cover or DIN panel mount version
  • Simple flow chart touch key programming
  • Scaleable universal pulse inputs and output
  • Multipoint linearity correction
  • PIN protected programming
  • Intrinsically safe design
  • Long battery life
  • Intrinsically Safe Option

For more information Click here to: download PDF / datasheet
